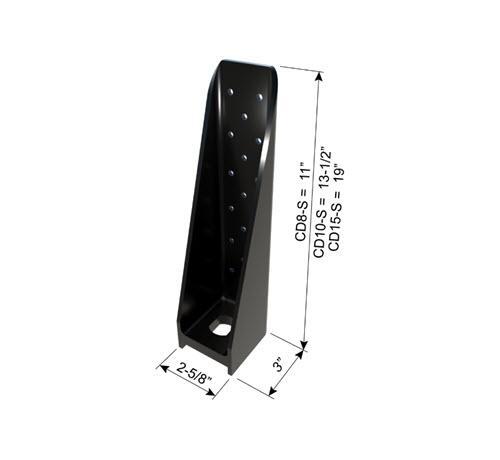

ClarkDietrich Holdowns provide cost-effective shearwall attachment and are used to transfer tension loads between floors or from structural members to the foundation.
Two-piece welded construction comes in three sizes for optimal performance. Installation is made easy with prepunched holes.
Specifications
- Material: 7 Gauge (179mil) with 1/2" bearing plate
- Anchor hole size: 7/8" x 1-1/8" for CD8 & CD10 and 1" x 1-1/8" for CD15
