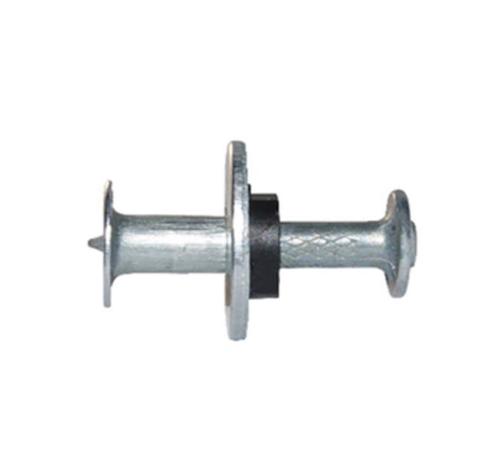

2 7/16 in Hilti X-C P8S Standard Fastener Pin w/ Washer
2 7/16 in Hilti X-C P8S Standard Fastener Pin w/ Washer Add to Quote autorenew
close

2 7/16 in Hilti X-C P8S Standard Fastener Pin w/ Washer

Description
Description

Premium single nail with steel washer for fastening to concrete using powder-actuated tools.

Features
  • Fastener with pre-mounted washer providing a larger bearing surface for improved clamping of fastened material
  • Pre-mounted steel washer offers maximum pull-over resistance for fastening soft materials to concrete
  • Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
  • Best suited for fastening to concrete with a hardness of up to 6,000 psi
Applications
  • Fastening wood to concrete, e.g. 2x4s, plywood, wood battens, formwork, kicker plates
  • Attaching a variety of materials to masonry block and concrete
  • Fastening wood profiles to concrete
  • Fastening termination bars to secure waterproofing membrane or moisture barriers
  • Wood to concrete, e.g. formwork boards, safety barriers, etc.
Specifications
  • Minimum thickness of base material (concrete): 3-5/32 in
  • Environmental conditions: Dry indoor
  • Material: Carbon steel
  • Fastener shank diameter: 0.14 in
  • Point type: Cut point
  • Product class: Premium

1M pcs/ctn

Code: HIL2091409
